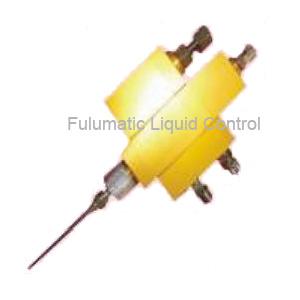

Dispensing Valve FU-H3075

Part No.: FU-H3075
Structure Type:Needle Off
Control Type:Double Acting
Type of Operation:A
Flow Adjustment：Available
Operating Air Source：0.4-0.7Mpa
Min.Shot Volume：0.01ml
Operation Viscositi：1-1.000.000cps
Body Material：Sus 304 Stainless Steel
Material Input Pressure：<10Kg
Material Inlet Outlet Size：1/4
Operating Cycle：<600/min
Overall Dimensions(mm)：Square □75*30 Long 130
Weight：450 g
Applied Material:(Bad fluidity,Low-Medium Viscosity )
Dispensing volume0.1g,5g, Solder paste
