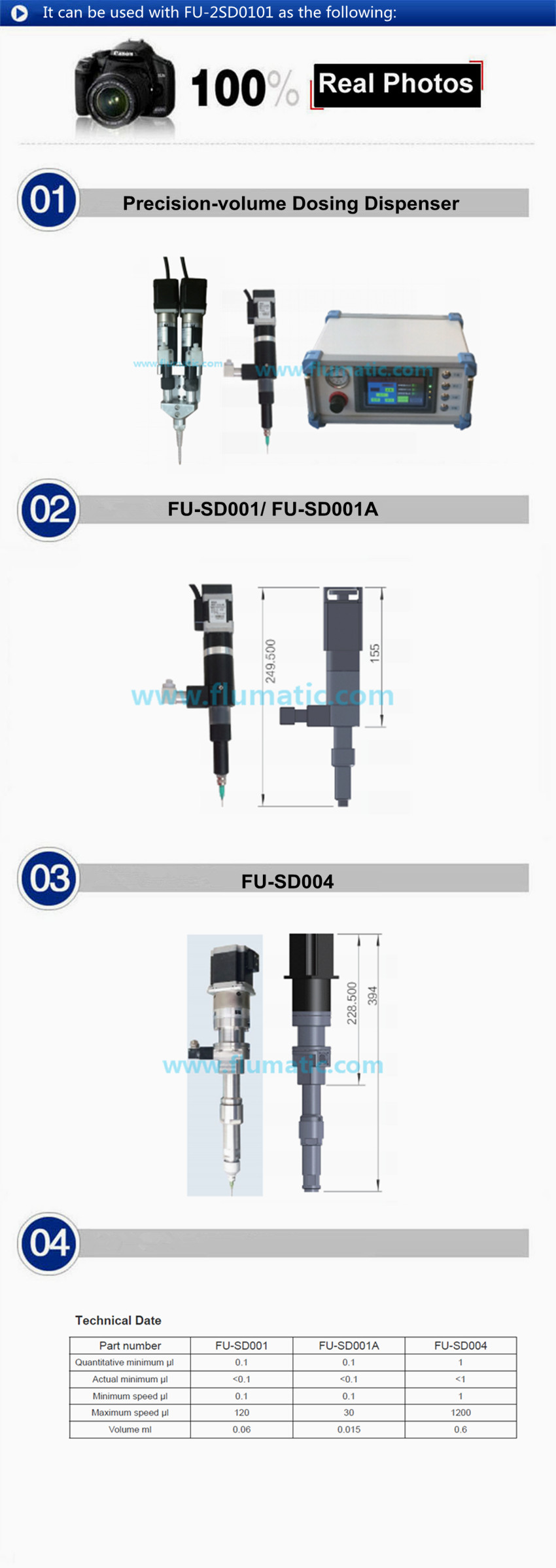

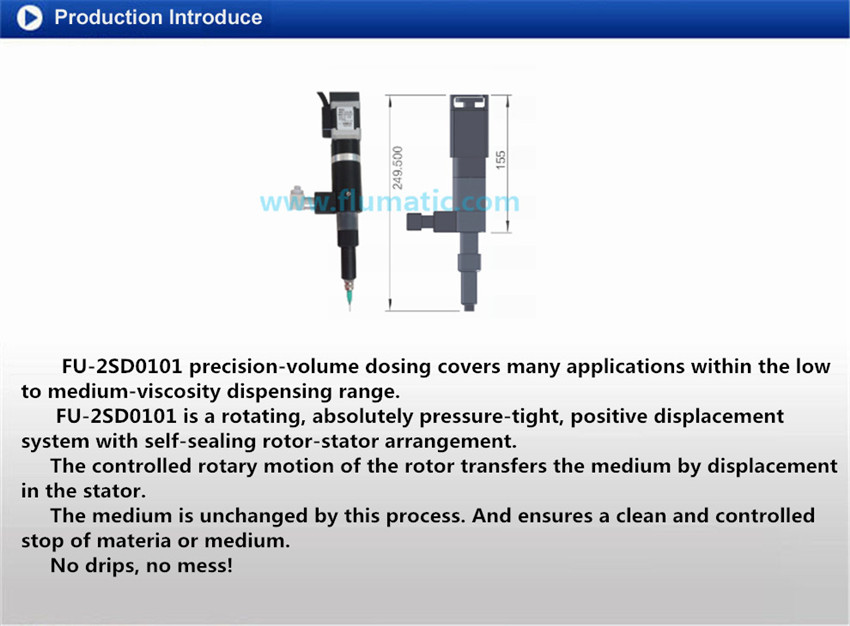

AB Precision-volume Dosing Dispenser

Weight

2768g

Material infeed:

G1/4 or G1/8

Material outfeed:

Static mixer with bayonet socket

Max.operateing pressure:

0-20 bar，input pressure,non-self-levelling fluid

Max.dosing pressure:

Up to 20 bar

Parts in contact with the media:

Aluminum,anodized SUS304

Seal:

EPDM/fluorubber

Static seals:

Viton O ring

Motor:

24-36 VDC,,planetary gears

Operating conditions:

+10℃ to +40℃,air pressure 1 bar

Medium Temperature:

+10℃ to +40℃

Approx.dosing volume per revolution:

0.03ml/rev

Accuracy of dosing:

±1%

Mixture ratio:

1:1,10:1

Min.dosing quantity:

0.005ml

Volume flow:

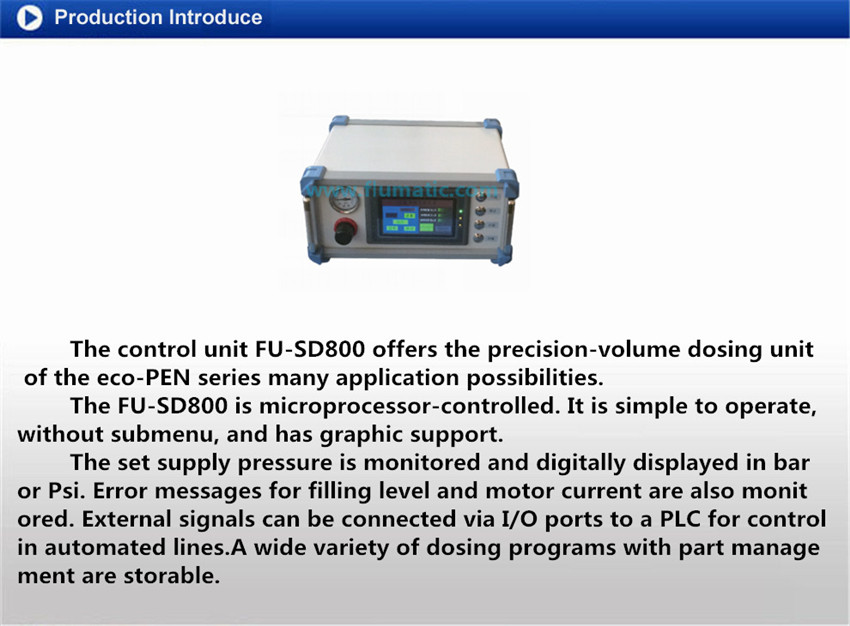

Part number:

FU-SD800

Power supply:

220V

Power Consumption:

<150W

Working Temperature:

—10~80℃

Dimensions:

330×310×160
